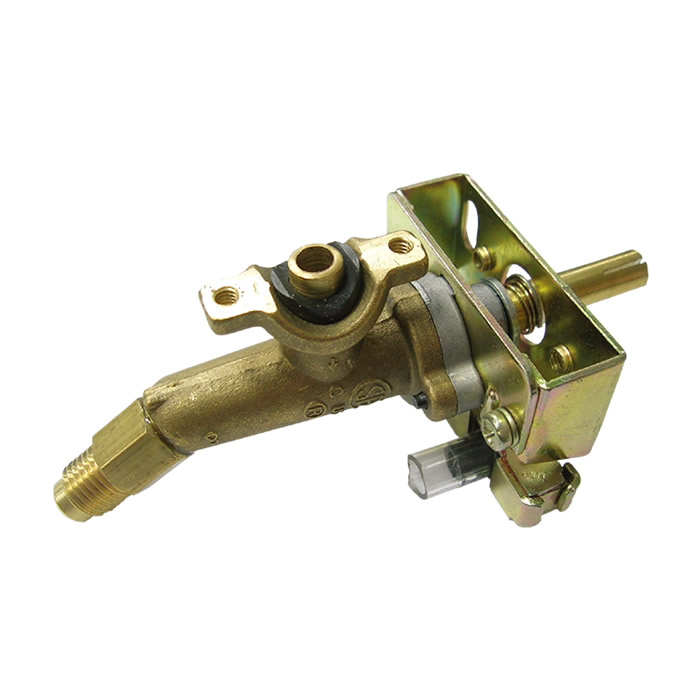

CV 740

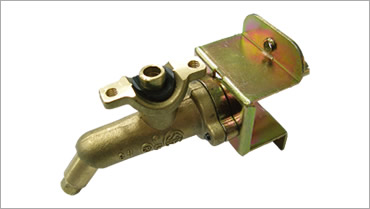

CV 742

-

Features:

- Maximum Inlet Pressure: 35 mbar

- Flow Capacity (1" W.C. Pressure Drop):

  Single Outlet: 12,500 BTU/hr

- Operating Temperature: -18°C~180°C

- Customization:

  ‧Inlet & Outlet Diameter

  ‧Rotation Diagram

Model No.	Angle	Inlet Diameter

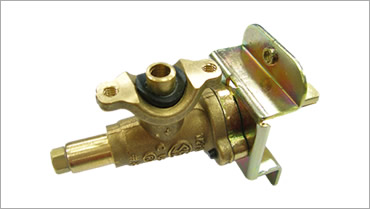

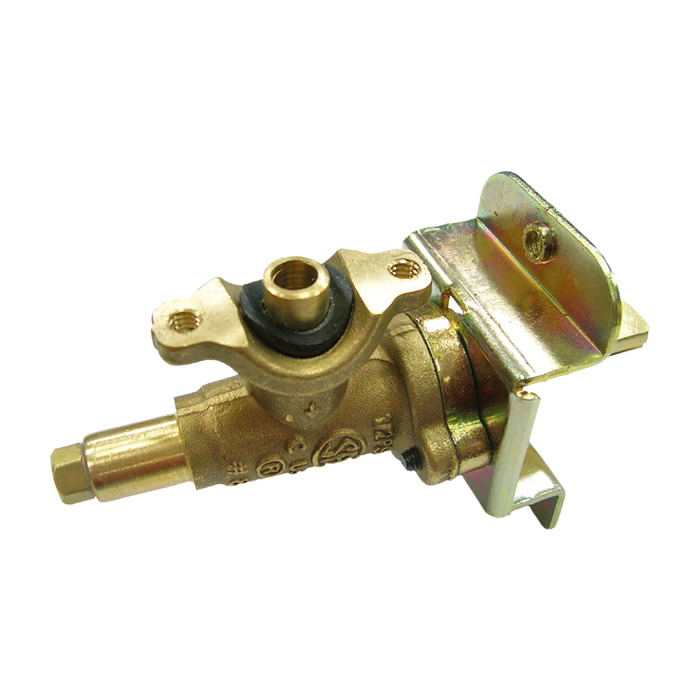

CV 700	0°	16mm Pipe Clamp
CV 700C	0°	19mm Pipe Clamp
CV 700D	0°	22mm Pipe Clamp

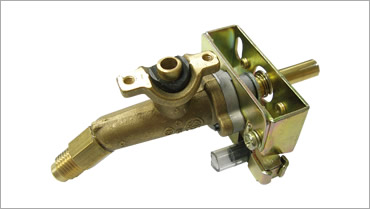

CV 740	30°	16mm Pipe Clamp
CV 740C	30°	19mm Pipe Clamp
CV 740D	30°	22mm Pipe Clamp

Model No.	Angle	Inlet Diameter

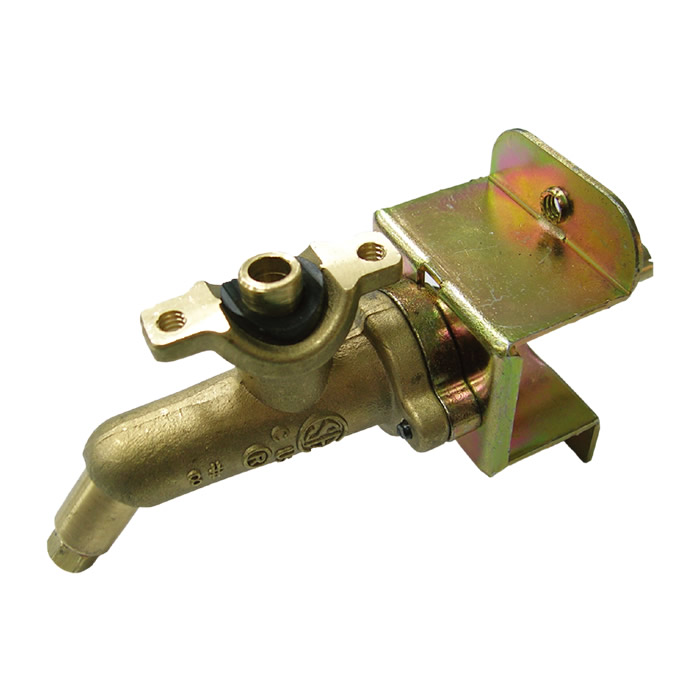

CV 742	45°	16mm Pipe Clamp
CV 742C	45°	19mm Pipe Clamp
CV 742D	45°	22mm Pipe Clamp

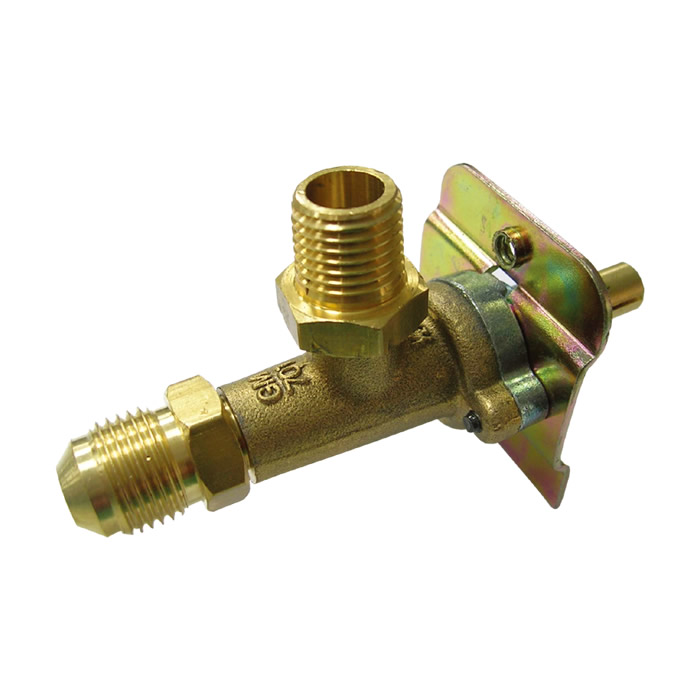

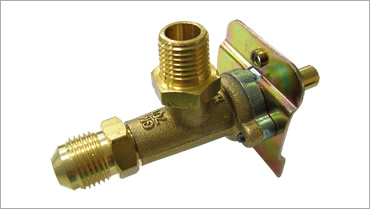

CV 701	0°	1/8" NPT

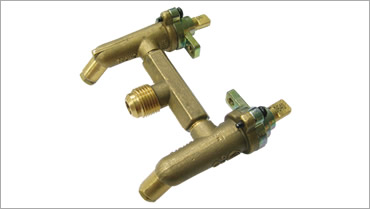

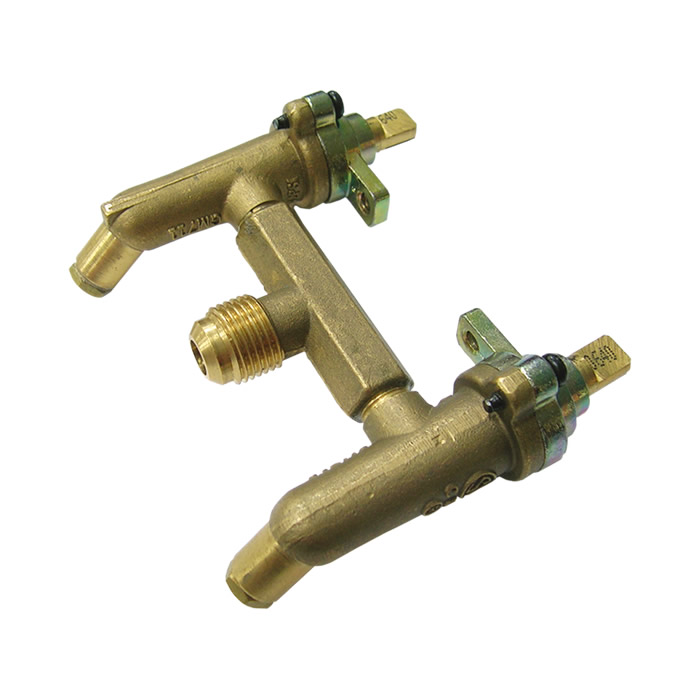

CV 710	45°	1/8" NPT
CV 711	45°	1/8" NPT
